How to Set Up a CAC Reader on Mac (2026)

Quick answer: A current Mac normally needs a compatible USB CCID smart-card reader and macOS’s built-in CryptoTokenKit support—not a generic CAC middleware download. Connect the empty reader, verify it in USB System Information, insert the CAC, confirm that macOS lists the card, and test an approved CAC-enabled site in Safari. Install additional software only when the card issuer, application owner or organization explicitly requires it.

This guide covers initial installation. If a previously working reader fails, use the macOS CAC troubleshooting decision tree instead.

What you need

• A supported Mac running a current, security-supported macOS release.
• A valid CAC and its PIN.
• A contact smart-card reader documented as USB CCID/PC/SC compatible.
• A data-capable USB adapter if the reader’s plug does not match the Mac.
• Authorization to use the target portal from this device.

Some government applications require managed equipment, VPN, virtual desktop or an approved browser. Reader setup does not override those controls.

Why macOS usually needs no CAC middleware

Apple documents native PIV smart-card and USB CCID reader support on modern macOS through CryptoTokenKit. Compatible identities appear to supported applications through Keychain services while the card is present; private-key operations remain on the card.

Legacy tokend solutions are no longer supported. Do not begin by installing CACKey, CoolKey, OpenSC, a kernel extension or a third-party “CAC enabler.” Additional token software may be appropriate for a nonstandard card only when an authoritative source supports it for the exact macOS version and Mac architecture.

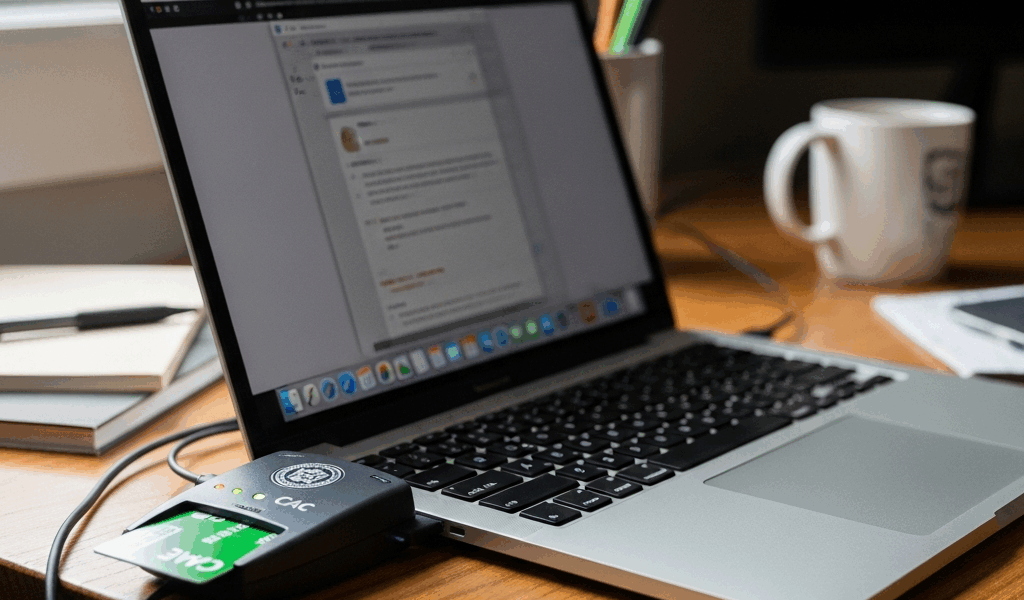

Step 1: connect and verify the reader

Connect the empty reader directly to the Mac for the first test when possible. Open Apple menu, System Settings, General, About, System Report, then select USB. The reader should appear under a USB bus.

A read-only Terminal view is:

system_profiler SPUSBDataType

If the reader is absent, do not install DoD certificates—the USB layer has not succeeded. Check the adapter, cable, port, accessory-approval prompt and reader compatibility. Avoid charge-only adapters. Use a current signed vendor driver only if the reader manufacturer states that the exact model requires it.

Step 2: insert and verify the CAC

Insert the CAC in the orientation shown on the reader. Apple documents this command for listing available smart cards:

security list-smartcards

If the reader appears in USB information but no card appears, remove and reinsert the CAC once. Confirm full insertion and the correct contact slot. A known-good reader/card comparison can separate card damage from reader hardware.

Do not initialize the card, bend it, clean it with abrasives or repeatedly enter a PIN. Handle a card that fails across approved known-good systems through the issuer or RAPIDS support process.

Step 3: confirm CryptoTokenKit support

Apple provides this read-only command for listing CryptoTokenKit token plug-ins:

pluginkit -m -p com.apple.ctk-tokens

A normal current system includes Apple’s built-in token support. Do not disable tokens or change com.apple.security.smartcard preferences as a routine setup step. Those settings can control local-login pairing, enforcement and certificate trust and may be managed through MDM.

Website authentication does not normally require pairing the CAC to the local Mac user. The sc_auth pairing workflow is a separate login/authorization use case typically controlled by an administrator.

Step 4: test Safari

Apple documents native client-certificate website authentication in Safari. Close unrelated applications using the card, open Safari, navigate to the current official portal URL and choose the authentication certificate only when requested.

Do not guess among certificates or enter the PIN repeatedly. Authentication, signature and encryption certificates have different purposes. Follow the portal’s certificate-selection instructions.

If Safari can display the identity and complete authentication, reader detection, card detection and native CryptoTokenKit integration are working. A failure limited to another browser belongs at the browser layer, not the reader layer.

Step 5: add DoD trust only when required

Reader setup and certificate trust are separate. If an approved portal reports a trust-chain error after the CAC is detected, first determine whether the problem concerns the website’s server certificate or the CAC client-certificate chain.

Obtain DoD PKI trust material only from the official DoD Cyber Exchange PKI/PKE area or an organization-managed deployment. Import only the anchors required by the organization or application. Do not download a tutorial’s certificate ZIP, trust an end-user certificate as a certificate authority, set every certificate to “Always Trust,” or bypass a TLS warning.

Chrome and Firefox

Browser builds and enterprise policies can differ in how they expose smart-card identities. Test Safari first because it establishes whether native macOS support works. Then consult current organization and browser guidance for the exact version.

Do not load OpenSC or another PKCS#11 module merely because an old article says Firefox or Chrome always needs one. Duplicate middleware can cause repeated identities and PIN prompts. If Safari works but another browser fails, preserve that evidence for browser or endpoint support.

Apple silicon Macs

M-series Macs use the same native CryptoTokenKit approach for compatible PIV cards. Apple silicon does not automatically require Rosetta, CACKey or OpenSC. If specialized third-party software is genuinely required, it must support the current macOS security model and the Mac’s architecture and should come from the authoritative vendor or managed-software channel.

Setup success checklist

• The reader appears in USB System Information.
• security list-smartcards reports the inserted card.
• Safari displays the expected certificate identity at an approved portal.
• One controlled PIN entry completes authentication.
• The portal either grants access or returns a specific account/authorization result.

An “account not found” or “not authorized” result can mean authentication worked but application access is missing. Contact the portal owner; reinstalling reader software cannot grant a role.

What not to do

• Do not install legacy tokend packages or random CAC enablers.
• Do not use third-party DoD certificate bundles.
• Do not disable certificate validation, revocation checks or macOS security.
• Do not pair/unpair the CAC to the local account for a website-only problem.
• Do not export private keys or save the PIN.
• Do not keep trying after unexpected PIN prompts.

Official references

• Apple Platform Deployment: Intro to smart card integration
• Apple Platform Deployment: Supported smart-card functions
• Apple Platform Deployment: Advanced smart-card options
• Apple Developer: CryptoTokenKit
• DoD Cyber Exchange: PKI/PKE overview

Apple and DoD primary sources were reviewed in August 2026. Organization policy and portal-specific requirements take precedence.
